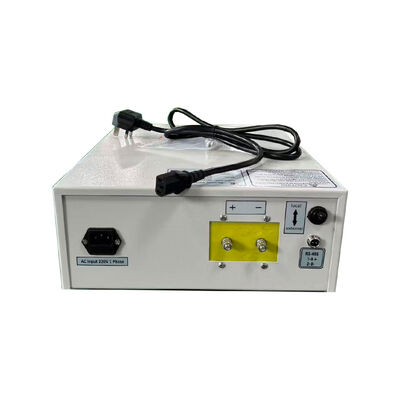

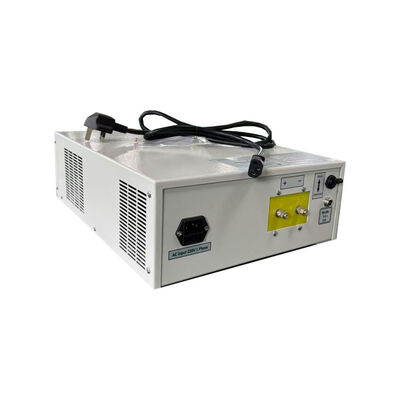

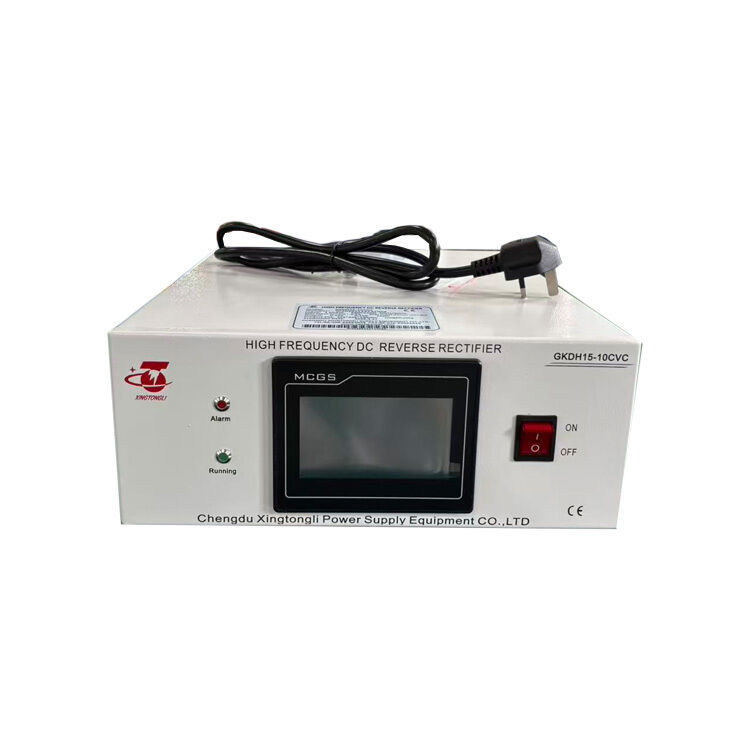

Name: 15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKDH15-10CVC
Price: 665.00 USD
Availability: InStock

Marchio:	Xingtongli
Numero di modello:	GKDH15-10CVC
MOQ:	1 pz
prezzo:	580-750$/unit
Dettagli dell' imballaggio:	pacchetto di esportazione standard in robusto compensato
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE ISO9001

Capacità di alimentazione:

200 set/set al mese

Evidenziare:

15V 10A DC power supply

Polarity reversing power supply with HMI

Low ripple RS485 control power supply

Descrizione di prodotto

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

This 15V 10A polarity reversing DC power supply is designed for high-precision electrochemical and laboratory applications. It provides stable DC output with ultra-low ripple (≤1%) ensuring consistent and reliable process results. Equipped with an intelligent CPU control system, it supports HMI touch screen operation and RS485 communication for easy remote control and system integration. With 220V single-phase input, this unit is ideal for electroplating, surface treatment, and research applications requiring programmable polarity reversal and precise current control.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0±15V continuously adjustable
- Current: DC 0±10A continuously adjustable
- Power: Max 150W (15V *10A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

Etichette:

Alimentatore in CC programmabile 30KV

alimentatore in CC programmabile 30A

Alimentazione elettrica programmabile 600V

Dettagli dei prodotti

Casa > prodotti >

Alimentatore in CC programmabile

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

Tutte le categorie

Alimentazione elettrica placcante

Alimentazione elettrica di elettrolisi

Alimentazione elettrica d'anodizzazione

Raddrizzatore di ossidazione

Alimentazione elettrica di elettrolucidatura

Alimentazione elettrica di elettrocoagulazione

Raddrizzatore del PWB

Alimentazione elettrica di elettroforesi

Alimentazione elettrica ad alta frequenza di commutazione

Alimentatore in CC programmabile

Alimentatore in CC ad alta tensione

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

Marchio:	Xingtongli
Numero di modello:	GKDH15-10CVC
MOQ:	1 pz
prezzo:	580-750$/unit
Dettagli dell' imballaggio:	pacchetto di esportazione standard in robusto compensato
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Marca:

Xingtongli

Certificazione:

CE ISO9001

Numero di modello:

GKDH15-10CVC

Quantità di ordine minimo:

1 pz

Prezzo:

580-750$/unit

Imballaggi particolari:

pacchetto di esportazione standard in robusto compensato

Tempi di consegna:

5-30 giorni lavorativi

Termini di pagamento:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione:

200 set/set al mese

Evidenziare:

15V 10A DC power supply

Polarity reversing power supply with HMI

Low ripple RS485 control power supply

Descrizione di prodotto

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0±15V continuously adjustable
- Current: DC 0±10A continuously adjustable
- Power: Max 150W (15V *10A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
